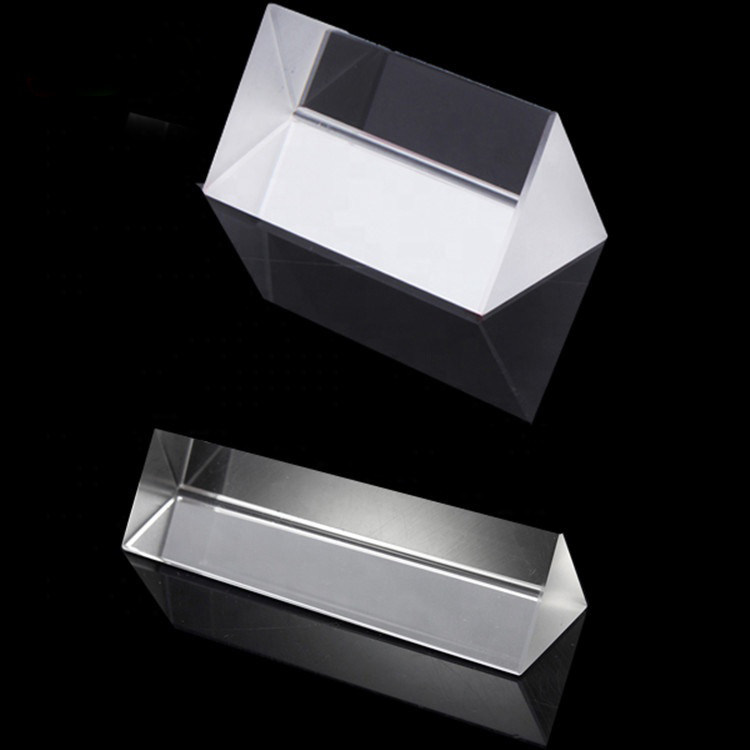

Optoelectronics Optical Glass Prism 200mm 40 Corner Cube Prism

बड़ी छवि : Optoelectronics Optical Glass Prism 200mm 40 Corner Cube Prism

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	Advance
प्रमाणन:	ROHS\Reach
मॉडल संख्या:	आवश्यकताओं के रूप में

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
मूल्य:	$0.2~$100
पैकेजिंग विवरण:	ईवीए+वैक्यूम
प्रसव के समय:	ऑर्डर के 3~30 दिन बाद
भुगतान शर्तें:	टी/टी एंड एल/सी
आपूर्ति की क्षमता:	1000k/प्रति माह

संपर्क करें

Optoelectronics Optical Glass Prism 200mm 40 Corner Cube Prism

वर्णन

प्रोडक्ट का नाम:	घन प्रिज्म	सामग्री:	BK7, नीलमणि, Ge, Si, ZnSe, CaF2 आदि
सतही गुणवत्ता:	60/40	आयाम सहिष्णुता:	+/- 0.01 मिमी
कोण सहिष्णुता:	3"~2'	समतलता:	एन=1~3
लंबाई:	3-100 मिमी	चौड़ाई:	3-100 मिमी
ऊंचाई:	3-100 मिमी	लंबाई सहनशीलता:	+/- 0.01 मिमी
चौड़ाई सहिष्णुता:	+/- 0.01 मिमी	कोण सहिष्णुता:	3"-2'
सतही गुणवत्ता:	10/5~60/40	आवेदन क्षेत्र:	इमेजिंग, प्रकाश व्यवस्था, लेजर आदि
कलई करना:	अनुरोध पर	इंटरफ़ेस प्रकार:	कैनन ईएफ-एस
व्यास:	25 मिमी	केंद्र मोटाई:	5 मिमी
शैली:	एंटीक	आवेदन क्षेत्र:	प्रकाश, लेजर आदि
आकार:	गोल	फोकल लंबाई सहनशीलता:	+/- 1%
सामग्री:	ऑप्टिकल ग्लास	परिचालन तापमान:	-20 से 70 °C
फ़िल्टर रिंग रंग:	काला, ज़ुल्फ़, सोना	अनुकूलित समर्थन:	ओईएम, ओडीएम
कोटिंग का विकल्प:	हरा	अपवर्तनांक:	1.52
फोकल लम्बाई:	150 मिमी
प्रमुखता देना:	Optoelectronics Optical Glass Prism , 200mm Optical Glass Prism , 40 corner cube prism

Professional custom 200mm optical glass big prism Large crystal suncatcher corner cube prism

K9 (BK7) has excellent mechanical properties and very low air bubbles and impurities, good scratch resistance. Because of its chemical stability, no special treatment grinding and polishing. Used in optoelectronics, microwave technology, and many other areas of diffractive optical elements.

“N”-glass as an environmentally friendly alternative to conventional lead and arsenic-containing glass types.
Find more information in the tabs below or on our website.
Compare glass types with our Interactive Abbe Diagram.

Specification

Materials	BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Length	5~100mm
Width	5~100mm
Height	5~100mm
Length tolerance	+/-0.03mm
Width tolerance	+/-0.03mm
Height tolerance	+/-0.03mm
Angle tolerance	2'~3"
Irregularity	ΔN=0.1~0.5
Surface accuracy	N=1~3
Surface quality	10/5~60/40
Coating	Upon request
Application area	Imaging,Lighting,Laser etc

Feature of fingerprint prism:

Right-angle prism uses critical angle characteristic. Efficient internal total reflection of incident light is one of the basic functions of right-angle prism.
It is often coated with some optical films
Right-angle prism itself has larger contact area and such typical angles as 45° and 90°, so it is easy to install and has better stability and strength in mechanical stress compared with the ordinary mirrors
Right-angle prism is the best choice for optical elements used in all kinds of equipments and instruments

Recommend Products

Company Profile

Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport.

Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service.

Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.

Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services;

2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost;

3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;

Certifications

Exhibition

Packing & Delivery

FAQ

Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.

Q: What's your MOQ?
A: 10pcs.

Q: What's your leadtime?

A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
